D2 Diamond Air Suspension Kit Volkswagen GOLF MK6 GTI φ55

€ 6.122,60
Artikelnummer: AR-VO-16-1-DIAMOND

EXTRA INFORMATIE

  • Product Code: AR-VO-16-1-DIAMOND
  • Automerk: Volkswagen
  • Geschikt voor: GOLF MK6 GTI
  • Bouwjaar: 08-12
  • Airsuspension Type: Diamond
  • Top Mount voorzijde: Nee
  • Top Mount achterzijde: OEM
  • Garantie: 1 year on Strut, compressor, air bag





TECHNISCHE INFORMATIE



Air Suspension Diamond

  • The remote control monitor of Diamond type will be supplied with height sensor kit. This system can be adjusted the ride height more sophisticatedly with IC programs which is not the same as other normal air suspension to adjust the ride height by air pressure. This system will measure, record the ride height desired accurately and depend on your setup to adjust the ride height while driving, which will not change the ride height lead to tire wear unusually, bottom out, or chassis attrition resulting from the different weights, temperatures, or any other unpredictable factors. It is a reliable digital ride height control system. Due to the easy installation, the height sensor kit just needs to bolt on the vehicle, the linkage kit should be attached on the lower control arms and then install the wire kit to complete the installation.
  • There are 2 adjustment knobs in this unit, one is for adjusting nitrogen pressure and the other one is for adjusting the damping force.
  • The compression and rebound damping settings can be adjusted separately, and above-mentioned adjustment knobs can be adjusted separately as well; There are 864 different settings to adjust.
  • The best part of this item is to extend the amount of oil and nitrogen gas which can increase the stability of the shocks and prevent the shock oil temperature too high from being exhausted after long-term use.
  • Any application that doesn't appear on our application guide can be customized to meet our sole distributor's requirements.
  • The bag and strut with nitrogen reservoir is made specifically for your personal use so both front and rear struts are customized with better handling.
  • You can choose the types of top mounts freely such as pillow ball top mount, aluminum top mount, rubber top mount, and rubber with pillow top mount.
  • Not only is this system allowed to change air pressure, but you can also adjust the maximum and minimum ride height freely to match up a body kit to get the desired ride height, which is one of our products features that other brands do not have.
  • A tire pressure gauge can be connected to the air tank to fill your tires; the air pressure in the tank is sufficient for the tire pressure gauge.
  • A pneumatic tool can be connected to the air tank as well to clean the exterior of your vehicle, the air pressure in the air tank is sufficient for the pneumatic tool.
  • After installation, you can adjust the ride height with such ease while in the car. The ride height can be adjusted all the time to reach your desired height depending on the load of your vehicle.
  • You can easily adjust the ride height while in the car. Adjusting the vehicle ride height is allowed when the vehicle is in motion.
  • The adjustment range of ride height is between 0 – 120/200mm (based on different applications).
  • The speed of lowering and raising vehicle ride height is 2-5 seconds only.
  • This kit comes with 8 x solenoid valves and 2 x remote control which allow you to adjust the ride height while in or out of the car.
  • AFH wireless memory remote control can display the air tank and front/rear pressure value. It will automatically modify the value while driving
  • This kit comes with two remote controls, one is with AFH wireless memory remote control and the other is with simple version. The remote control is available for 4 ride height memories.
  • This product includes a full set of shock absorbers. It is at your option to replace air bags with 4 x coil springs to make a full set of shock absorbers once an air management system is not fitted. (PS. The high performance shock absorbers supplied with this kit are damping and ride height adjustable).
  • This system is designed for easy bolt-on so it is not required to work with the O.E.M shock absorbers.
  • The additional function for this system is to display, show-off or hookup.
  • No need to install pressure gauge and switch and can protect the car interior design.
  • Memory for engine start and automatically orient ride height on remote control.
  • Wire setting easy for installation.
  • Power save device (sleeping mode).
  • Battery change unnecessary (charged by USB).
  • Function setting for speeding and exhausting.
  • Please make sure that your technician will carefully examine if air bags conflict with other components after installed the kit, the damage of air bag won’t be covered by the warranty.
  • All applications listed on our website are for 2WD model unless we specify 4WD.



WARRANTY :

Shock absorbers, compressor, air bag has one year limited warranty.

We authorize a well-known brand’s OEM factory to manufacture the electric control box and remote control. It has been through testing around 6 months, we are confident with the quality, but if there is any break-down the parts, customer must send back to Taiwan for repairing. (It’s a common warranty for all electric products). After inspecting, if the break down is caused by flooded or throwing down heavily, it won’t be under warranty.

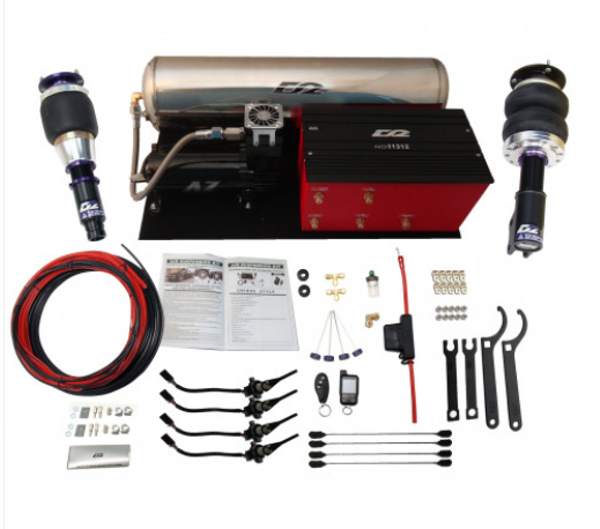

THIS SYSTEM INCLUDES :
  • 20L STAINLESS AIR TANK× 1
  • HIGH SPEED COMPRESSOR × 1
  • MOTOR VIBRATION-FREE MOUNTING HARDWARE × 4
  • HIGH-TECH SILENCERS PLATE BASE × 1
  • AIR HOSE × 1
  • 25M 4X6MM NYLON × 1
  • 1M 7.5X10MM NYLON LINE× 1
  • 7M POWER CORD × 1
  • 60A FUSE × 1 , FUSE BOX × 1
  • AFH REMOTE CONTROL ×1 , SIMPLE REMOTE CONTROL×1
  • PRESSURE SENSOR x 1
  • SHOCK ABSORBERS WITH 36 LEVELS OF ADJUSTABLE DAMPING × 4
  • HEIGHT SENSOR KIT x 4
  • DIAMOND ECM ASSEMBLY x 1
  • MANAUL INSTALLATION × 1



Levertijd: 2-3 weken



Also available with adjustable Pillowball and/or Rubber Top Mounts. Please contact us for more information.
