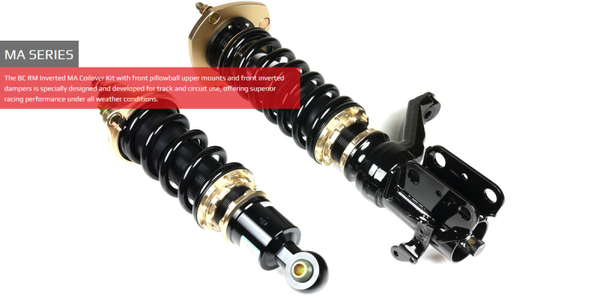

VW Golf 5 Strut 54.5 BC-Racing Coilover Kit RM-MA
This BC Racing coilover has the following specifications:
- Default Springrate Front: 7K
- Default Springrate Rear: 6K
- Pillowball Topmounts Front: NO
- Pillowball Topmounts Rear: NO
- Camber Adjustable Topmounts Front: NO
- Camber Adjustable Topmounts Rear: NO
- Manufacturer Code: H-04-MA
RM Series: Track use ‐ Inverted Dampers (Stage 3)
BC Racing's inverted RM Series model includes all of the great features of the BR Series model, then takes everything up a notch. The inverted coilover system moves vital damper fluid away from detrimental heat sources to avoid overheating the fluid which can cause damper fade under extreme use. Inverted dampers handle high lateral loads more efficiently and offer increased durability under extended road course sessions. Other advantages are the reduction of unsprung weight by moving the majority of the coilover mass to the chassis of the vehicle where weight can be more easily shaved. This is a durable coilover setup for those looking to attack a road course, hill climb or tarmac rally.
- Inverted Mono-Tube Shock Design
- Height Adjustment Via Shock Body, Not Spring
- 30-Clicks Of Damping Adjustment (Compression/Rebound) Simultaneously
- Front Camber Plates Standard On Applicable Kits
- Rear Camber Plates Standard On Applicable Kits
- Custom Spring Rates Available For Most Applications
- Attention: As these sets are for track use only they can make noises that for some users may not be acceptable for daily/street use.
- In the box: 4 Coilovers including Dampers, Springs, Lower Mounts, Topmounts (if applicable), Adjuster Wrenches, Warranty Card with Serial Nr.
Note: Pictures online are mostly general (sample) images of the RM series, it does not always show the actual set for your car.
Subseries Info:
The RM-Series has the following subseries, often depending on the original suspension design that your car manufacturer used (like Mcpherson, double wishbone or A-Arm);
RM-MH:
- Front: Inverted Damper With Pillow Ball Top Mount (Camber Adjustable)
- Rear: Inverted Damper with Pillowball Top Mount (Camber Adjustable Where Applicable)
RM-MA:
- Front: Inverted Damper With Pillow Ball Top Mount (Camber Adjustable)
- Rear: Standard Damper with Rubber Top Mount
If in doubt which set you like to order; Just contact us by email for advise.
General info about BC Racing:
BC Racing offers the following levels of coilover kits;
V1 Series: Street use ‐ Entry Level (Stage 1)
BR Series: Street & Track use - Pro (Stage 2)
DS Series: Track use - Digressive (Stage 2.1)
RM Series: Track use ‐ Inverted Dampers (Stage 3)
ER Series: Track use ‐ 2-Way Adjustable (Stage 4)
HM Series: Track use ‐ 2-Way Adjustable - Inverted Dampers (Stage 4.1)
ZR Series: Track use ‐ 3-Way Adjustable (Stage 5)
Brand info:
BC Racing is originally founded in the late 90"s and they have been a well known industry leader to this day and their products are found in all types of vehicles ranging from complete race-cars to everyday drivers. BC Racing Benelux / Showoff Imports teamed up with BC racing in the late 2000's as their sole-distributor to start offering the amazing products BC racing manufacturers to the public in The Netherlands, Belgium and currently even many more EU countries.
Coilovers from BC Racing are the pinnacle of adjustable performance for your ride. They"re designed to compete at the very highest levels and take the punishment of circuit and fast road abuse in their stride. For example; The BR Series Street and circuit coil over offer height adjustability via a bottom mount (to maintain full damper travel) aluminium top plates, pillowball upper mounts and a dust boot to protect the damper seals.
The dampers themselves incorporate a large 46mm diameter piston, housed within a 53mm diameter damper body to ensure maximum oil capacity. Damping has been worked out so carefully that BC units are filled with a viscosity of oil that favorably alters the damping to take account of the oil heating up during hard use. The large capacity of the oil reservoir in BC dampers reduces temperature fade of the oil keeping damping performance at the highest possible level. BC"s damper units are also pressurized with nitrogen gas that reduces the aeration of the oil and improves damper consistency and damping quality.
The BC range provides a great "bang for your buck" coilover setup that mixes street and circuit use very well. With an entry-level price coupled with excellent performance, you"ll be hard pushed to find a coilover quite as capable for anywhere near the price tag.
Springrates:
We have the ability to set up your coilover kit with custom spring rates based on your needs. If you need custom specs for spring rate then please email us directly. Be advised, the standard kit that BC Racing puts together is a very good match for most cars and drivers so most people don"t need a "custom" kit! Custom Spring rates will require 1-3 weeks build time since they are built to order.
Camber Plates:
Camber plates are not available on some kits due to the factory design of some vehicles. Camber plates will generally only work on a "McPherson strut" design. Reason is because some car makers use A-Arm style suspension on their cars, both front and rear. This style of suspension will not support the use of a camber plate, so you would need to use either an adjustable Arm/Link or other camber adjustment setup. For example; If you ever see a listing that says a Civic EK kit includes camber plates, many times it is not correct. These listings are usually generic listings that cover many makes of cars. The kits will generally ship with rubber insert upper mounts, which are ideal for street use, Pillowball plates are optional. However the pillowball plate is just a solid steel bearing, it has no adjustments.
Geschikt voor:
- Volkwagen Golf MKV GTI\TDI 2004-2008
Levertijd: 2-3 weken
